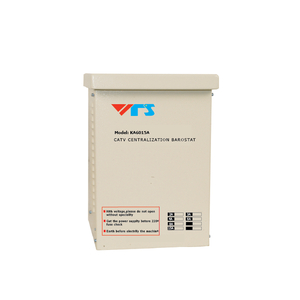

BỘ CẤP NGUỒN 60V/15A VTS KA6015A

Mã sản phẩm: KA6015A Thương hiệu: VTS- CHINA Bảo hành: 12 Tháng

Vui lòng gọi

 Summary KA6015A power supplies with the functions of automatic voltage regulation and short-circuit protection are Magnetic Saturation Power Supplies. The high-performance magnetic saturation transformers are used. These power supplies can de taken away from voltage fluctuation of mains supply of 220V to ensure the CATV line equipments are safe. It's the best choice for large and medium-sized CATV systems.

 Summary
KA6015A power supplies with the functions of automatic voltage regulation and short-circuit protection are Magnetic Saturation Power Supplies. The high-performance magnetic saturation transformers are used. These power supplies can de taken away from voltage fluctuation of mains supply of 220V to ensure the CATV line equipments are safe. It's the best choice for large and medium-sized CATV systems.
KA6000B power supplies with the functions of automatic voltage regulation and short-circuit protection are Electronic Constant Voltage Power Supplies. Silicon steel sheet ring transformers and lightning protection circuits are used. This power supply with large capacity, low loss, high efficiency, no noise, pure sine wave output is the best choice for CATV systems.
KA6000C power supplies are the Intelligent Hot Standby Power Supplies. Add Single Chip Microcomputer Intelligent Control Circuits on KA6000 A Magnetic Saturation Power Supplies. Two power supplies can connect with network at the same time. Identify the CATV status and implement backup switching automatically. So the service ability of CATV network is improved.
 Performance Characteristic
KA6015A
n  High quality magnetic saturation transformers are used. It's AVR Voltage range is wide, output power is high and Load Capacity is strong. It gets the functions of automatic voltage regulation, short-circuit protection and lightning protection.
n  Its output is independent. Switches and fuses can de installed in each way independently. 5/8 standard cable interfaces or perforation connectors are used as output interfaces. Power inserters are installed in.
n  The casing is strengthened, the noise is low. It's easy to install line, because of kinds of strengthened casing structures.



KA6015A
Item Technique Parameter
Power Stability Range Input 175V-250V,full-load output change ±1%
Input 160V-280V,full-load output change ±2%
Load Characteristic Difference between no-load and full-load ≤2%
Short-circuit Protection Load short-circuited,input current is 2.5 times heavier than full-load current Output Voltage is 0,cut off the power in 1 hour, transformers will be OK
Operating Environment -40℃~ +40℃
Insulation Characteristic 1500V,There is no breakdown in 1 minute,1500V
Output Voltage ~AC60V±3V(50Hz)
Output Current 2.2A、3.2A、4.2A、6A、10A、15A(Choose any one)
