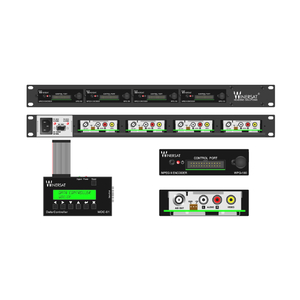

BỘ MÃ HÓA KÊNH WINERSAT WPG-100A

Video Input
 Input color demodulation system
 NTSC
 PAL
 SECAM
 Auto-detection
 Analog input Formats
 CVBS (Composite Video)
 S-Video (Y/C)
 YPbPr Component (VESA, MII, SMPTE & BetaCam)
 Programmable Video Controls
 Hue
 Brightness
 Saturation
 Contrast
 Propriteary Architecture for looking to weak, noisy and unstable video source from VCR's, tuners etc.
 Macrovision® copy protection detection
 Adaptive comb filters and CTI/DNR video enhancement
 4:2:2 to 4:2:0 colour format conversion
Video Encoding
 Encoding format: MPEG-2 4:2:0,MP@ML
 Frame arrangement
 Up to 25 Mbits/sec I-only encoding
 Up to 15 Mbits/sec IP-only or IBP encoding
 Output bit-rate: 1.5 ~ 25 Mbps
 Bit-rate Control Support
 Constant Bit-rate (CBR)
 Variable Bit-rate (VBR)
 Dynamic Parameters
 GOP (Group of Pictures)
 Motion compensated
 Stream multiplexer
 Multiplexing of video and audio streams according to the MPEG-2 systems standard ("ISO 13818-1")
 MPEG time stamp (PTS/DTS/SCR/PCR) generation and insertion (synchronization)
 Output format: ASI x 1
Audio Encoding
 Quantification: 16 bits
 Sampling rate: 48 KHz
 MPEG-1 layer 2 audio encoding at 256 Kbits/s or 384 Kbits/s
Control
 Front panel keypad and LCD
