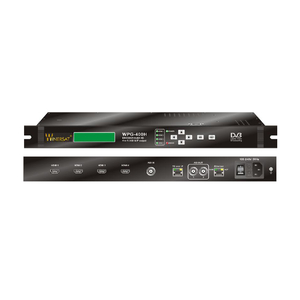

ENCODER HD MPEG4 WPG-400H

FEATURES

 H.264/MPEG-4 AVC High Profile Level 4.0 video encoding, advanced video pretreatment algorithm, MPEG-1 audio encoding.

 4×HDMI+ASI input

 Support HDCP

 Support multiple HD formats including 1080i/p and 720p

 Front plate LCD/Keyboard control and remote setting by NMS thru Ethernet

SPECIFICATIONS

INPUT
4 x HDMI:High Definition Multimedia Interface
1 x ASI:DVB standard, BNC interface (not with SPTS)
VIDEO CODING
4:2:0 encoding H.264 HP@L4 MP@L3
H.264 Adaptive Field Frame (AFF)
H.264 Field-Based (FB)
Full HD: 1920×1080×60/50i/p, 1280×720×60p/50p
STANDARD
ISO/IEC14496-10 (H.264/ MPEG-4 AVC)
AUDIO
Bit Rate:128, 160, 192, 224, 256, 320, 384Kbps
Sample Bit Rate:32KHz, 44.1KHz, 48KHz
Property:MPEG-1 Layer2
OUTPUT
2 x ASI:DVB standard, BNC interface
IP:IP/UDP (TS over IP), SPTS/MPTS/Unicast/Multicast
OUTPUT BIT RATE
1 to 20Mbps (4:2:0) per channel
CONTROL
NMS (Ethernet RJ-45), Keyboard + LCD
GENERAL FEATURES
Dimension (W x L x H) : 482 x 410 x44 mm
Power Input:100-240VAC, 50Hz, 25W
Temperature Range:0~45°C (Operation); -20~80°C (Storage)
