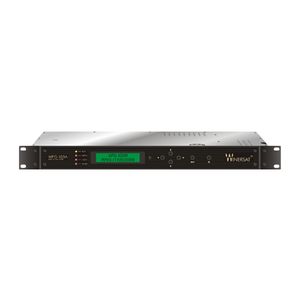

ENCODER MPEG 2 HD WINERSAT WPG-200H

Mã sản phẩm: WPG-200H Thương hiệu: WINERSAT-TAIWAN

Vui lòng gọi

ENCODER MPEG 2 HD WINERSAT WPG-200H

FEATURES

 Support main video resolutions 720p, 1080i, 480p/i.....etc., MPEG-2 HD.

 PAL/NTSC Video Input available with Composite or YPbPr.

 60 fps (frames per second) to assure crystal clear video quality on fast-moving pictures.

 60 fps & 30 fps for selections. Either 30fps or 60fps can be selected for each video.

 38 Mbps max video encoding with low latency.

 Closed Caption available thru video composite input (U.S. only).

 Digital AC-3 Dolby pass-thru and PCM audio available

 HDMI available through convertible cable

 Icon display for content theft prevention.

 Front plate LCD to read data.

 Deluxe Aluminum front plate, chassis and ears.

Input
Component Video (Y, Pr, Pb) RCA connectors, 75 Ohm
720p@60fps / 1080i@30fps
1080i, 720p, 480p, 480i
HDMI HDMI to YPbPr cable
Closed Caption EIA/CEA-608 captions accepted over composite video input
SPDIF Digital Audio Physical Connections
RCA 75 Ohms
TOSLINK optical
AC-3 Pass-through
Video Encoder
Encoder Video Profile MPEG2 HD Profile 2 : ISO13818-2 MP@HL (1920x1080 or 1280x720)
Traffic Shaping Variable Bit Rate
Video Transport Bit Rate 38.78 Mbps
Video Encoding Data Rates Variable, 7 Mbs - 38 Mbs
Color Profile .4:02:00
Video, Audio PID Programmable
Program Information Programmable
Audio Encoder
Encoder Audio Profile ISO/IEC 11172 MPEG 1 layer 2 or ATSC A/52
Digital Pass-through Dolby Digital© (AC-3) 1-5.1 channel, Dolby© E, Linear PCM
ALC (Audio Level Control)
Output Impedance Unbalance
Level Range 0Vpp~2Vpp (MAX)
Level Setting .+30dB to -12dB
ASI Output
Output Bit Rate 108Mbps Max.
Connector BNC Type
Control/Setup
Network interface 10/100M Ethernet via RJ45 connection
General
General 90-260VAC, 50/60Hz, Switching Power Supply
Packing 19”(L)*8.1”(D)*1.75”(H)
5 Sets / Carton / 12 Kgs / 2.75 cuft
1 set / Inner Box
