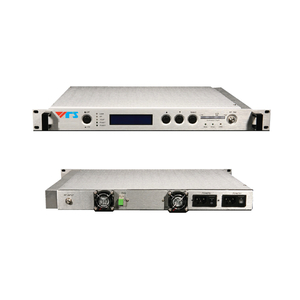

MÁY PHÁT QUANG 1310NM VTS HT-8300

HT-8300

VTS

12 Tháng

Máy phát quang 1310nm VTS HT-8300 chuyển đổi tín hiệu Truyền hình cáp ( Tín hiệu RF ) sang tín hiệu quang, để truyền tải đi xa trên hệ thống cáp quang, mức suy hao tín hiệu thấp, được kết hợp sử dụng trong hệ thống truyền hình cáp địa phương, Hệ thống truyền hình cáp các khu Resort, khách sạn với số lượng phòng lớn.... Máy phát quang 1310nm VTS HT-8300 có 1 cổng RF vào và 1 cổng quang ra.

MÁY PHÁT QUANG 1310NM  VTS HT-8300

• Dual Module RF drive, high efficiency laser pre-distortion adjustment.
• Full-automatically optical Modulation Intensity (OMI) control, AGC&MGC.Under AGC select, input range is 78dBuV~88dBuV, system index is optimum. Under MGC select, input range can be adjusted 75dBuV~90dBuV by the ATT on front panel.
• Front panel has 20 grades OMI select display (Modulation Depth). Under AGC select, within RF range, OMI is always at NOM select. Under MGC select, OMI can be at NOM select by adjusting ATT.
• Dual power supply inside backup. Full-automatically switch. One is working, the other as cool backup (suggested). Both are working at the same time, one as hot backup. If one is damaged, switch to the other full-automatically. Switch time≤10us.
• Full-automatically control of casing temperature, ensure long life of the laser. Casing temperature is monitored and controlled by micro-processor. Display screen shows the actual operation temperature in time. When casing temperature≥45°C, Two fans at the back panel will open automatically to cool it by constraint. When casing temperature≤35°C, the transmitter will turn down automatically to ensure longer life of the fans.
• RF input port. AM interface Input 59 routes PAL-D (47-550MHz)
• Time locked function. HT8300, with time control and lock function, user can set the working time (eg, 3 months) by the software on the front panel. If exceeding the fixed time, there will be alarm, only the password can turn on the machine again otherwise it will turn off automatically.

Performance Index Supplement
Optic
 feature
Wavelength (nm) 1310±10
Output power (mW) 4~24
Return loss (dB) ≥55
Optical fiber connector (MHz) SC/APC Optional FC/APC
RF
 feature
Work bandwidth (dBmV) 45-862
Input level (dB) 15~25 AGC
Flatness (dB) ≤±0.75 45~862MHz
Return loss (Ω) >16 45~750MHz
Input impedance   75 RF/INPUT
RF interface   F type Optional imperial
Link
feature
Transmit channel   PAL-D/60CH NTSC/80CH
CNR (dB) ≥52 10Km optical fiber,
0dBm receive
CTB (dB) ≤-70
CSO (dB) ≤-63
General
 feature
Network interface port   RJ45, RS232 Support I.E. & SNMP
Power supply (V) 90~265VAC .-48VDC optional
(30~60VDC)
Power Consume (W) ≤50 Single power works
Work temp. (°C) -5~65 Machine temp.
control automatically
Storage temp. (°C) -40~85
Operating relative humidity (%) 5~95
Size (") 19×14×1.75 (W)x(D)x(H)



Model Power (mW) Bandwidth (MHz) 59 route PAL-D system index (dB)
Link Loss CNR2 CTB CSO
HT-8304 ≥4 47~860 7 ≥52 ≤-70 ≤-63
HT-8306 ≥6 47~860 9 ≥52 ≤-70 ≤-63
HT-8308 ≥8 47~860 10 ≥52 ≤-70 ≤-63
HT-8310 ≥10 47~860 11 ≥52 ≤-70 ≤-63
HT-8312 ≥12 47~860 12 ≥52 ≤-70 ≤-63
HT-8314 ≥14 47~860 12.5 ≥52 ≤-70 ≤-63
HT-8316 ≥16 47~860 13 ≥52 ≤-70 ≤-63
HT-8318 ≥18 47~860 13.5 ≥52 ≤-70 ≤-63
HT-8320 ≥20 47~860 14 ≥52 ≤-70 ≤-63
HT-8322 ≥22 47~860 14.5 ≥52 ≤-70 ≤-63
HT8324 ≥24 47~860 15 ≥52 ≤-70 ≤-63
